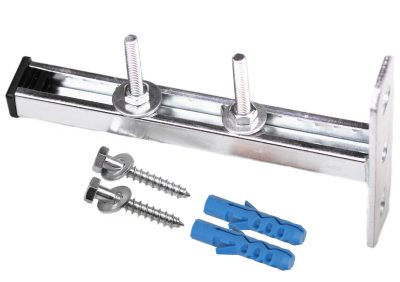

CANTILEVER ARM SET

KONZOLOVÁ SESTAVA
  • Technical data
  • material: steel
  • galvanized
Composition of the set:
1x cantilever arm 27/18 - 200 mm
2x slide tee-bolt assembly 27/18-28/30 M8x50 mm
2x wood screw DIN 571 8x60
2x steel washer DIN 125A
2x plug 10 Nylon
1x cap 27/18
1x plastic bag
Composition of the set:
1x cantilever arm 27/18-300 mm
3x slide tee-bolt assembly 27/18-28/30 M8x50 mm
2x wood screw DIN 571 8x60
2x steel washer DIN 125A
2x plug D10 Nylon
1x cap 27/18
1x plastic bag
Ordering code
CAD
Packaging in pcs
Typ
Number of packaging
Demand
Ordering code CAD Packaging in pcs Typ Number of packaging Demand
334012200 - 10 Cantilever arm SET 27/18 × 200, 2xM8x40, D10 NY
334012300 - 10 Cantilever arm SET 27/18 × 300, 3xM8x40, D10 NY
