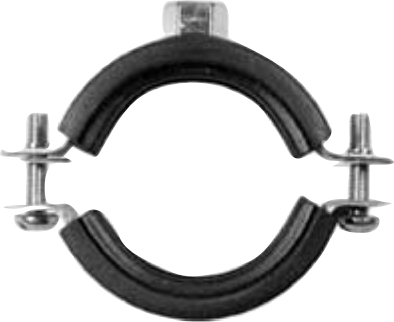

Rubber lined two-screw pipe clamp

OBJÍMKA DVOUŠROUBOVÁ
OBJÍMKA DVOUŠROUBOVÁ
  • Technical data
  • material: steel
  • galvanized
  • sound insulating insert: SBR/EPDM
Pipe clamps dimmensions 48-53, are available also with nut M8/M10.
Ordering code
CAD
Diameter D (mm)
M
Coul
L (mm)
S x t (mm)
Fa,z (N)
Packaging in pcs
Number of packaging
Demand
Ordering code CAD Diameter D (mm) M Coul L (mm) S x t (mm) Fa,z (N) Packaging in pcs Number of packaging Demand
312001216 12-16 M8 1/4" 56 20 x 1,25 800 100
312001719 17 - 19 M8 3/8" 59 20 x 1,25 800 100
312002023 20 - 23 M8 1/2" 62 20 x 1,25 800 100
312002530 25 - 30 M8 3/4" 68 20 x 1,25 800 100
312003138 31 - 38 M8 1" 78 20 x 1,25 800 100
312004046 40 - 46 M8 5/4" 88 20 x 1,25 800 100
312004853 48 - 53 M8 6/4" 96 20 x 1,25 800 50
312005459 54 - 59 M8/M10 101 20 x 1,25 2100 50
312006064 60 - 64 M8/M10 2" 111 20 x 1,25 2100 50
312006771 67 - 71 M8/M10 116 20 x 1,25 2100 50
312007278 72 - 78 M8/M10 2 1/2" 127 25 x 1,5 2500 50
312008186 81 - 86 M8/M10 138 25 x 1,5 2500 50
312008792 87 - 92 M8/M10 3" 145 25 x 1,5 2500 50
312095103 95 - 103 M8/M10 156 25 x 1,5 2500 50
312102116 102 - 116 M8/M10 4" 170 25 x 2 2500 50
312210300 - 102 - 116 Eco M8 4" 170 20 x 2 1660 50
312121127 121 - 127 M8/M10 185 25 x 2,5 3000 25
312133141 133 - 141 M8/M10 5" 201 25 x 2,5 3000 25
312159168 159 - 168 M8/M10 6" 230 25 x 2,5 3000 25
312167170 164 - 170 M8/M10 245 25 x 2,5 3000 12
312182188 182 - 188 M8/M10 268 25 x 2,5 3000 12
312193203 193 - 203 M8/M10 275 25 x 2,5 3000 12
312200210 204 - 210 M8/M10 8" 283 25 x 2,5 3000 12
312210219 210 - 219 M8/M10 8" 283 25 x 2,5 3000 12
