Stainless steel products/

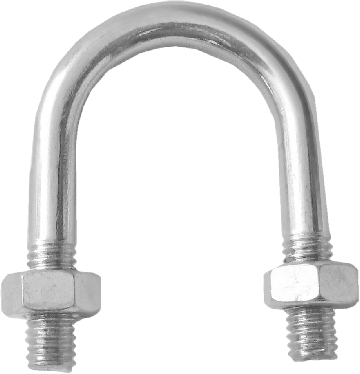

U-BOLT FROM ROUND STAINLESS STEEL V2A

TŘMEN Z KRUHOVÉ OCELI A2
TŘMEN Z KRUHOVÉ OCELI A2
  • Technical data
  • material: stainless steel V2A
Ordering code
CAD
Diameter D (mm)
M
Packaging in pcs
La (mm)
L1 (mm)
Number of packaging
Demand
Ordering code CAD Diameter D (mm) M Packaging in pcs La (mm) L1 (mm) Number of packaging Demand
322402710 - 18 M6 1 58 25
322402715 - 21,3 M6 1 56 30
322402720 - 26,9 M6 1 61 34
322402725 - 33,7 M6 1 69 40
322402732 - 42,4 M8 1 80 52
322402740 - 44,5 M8 1 81 55
322402741 - 48,3 M8 1 85 56
322402750 - 52 M8 1 90 68
322402755 - 60,3 M8 1 95 70
322402765 - 70 M8 1 106 80
322402780 - 85 M10 1 125 98
322402781 - 88,9 M10 1 128 100
322402811 - 104 M10 1 165 115
322402816 - 114,3 M10 1 164 125
322402825 - 129 M10 1 168 143
322402830 - 139,7 M10 1 183 150
322402850 - 154 M12 1 223 170
322402855 - 168,3 M12 1 235 184
