Rubber lined one-screw pipe clamp

OBJÍMKA JEDNOŠROUBOVÁ
OBJÍMKA JEDNOŠROUBOVÁ
  • Technical data
  • With a quick-closing system
  • material: steel
  • galvanized
  • sound insulating insert: SBR/EPDM
Ordering code
CAD

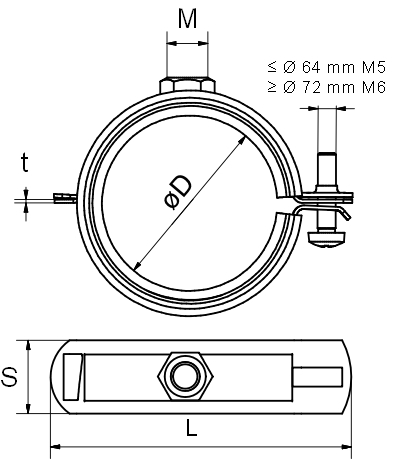

Diameter D (mm)
M
Coul
L (mm)
S x t (mm)
Fa,z (N)
Packaging in pcs
Number of packaging
Demand
Ordering code CAD Diameter D (mm) M Coul L (mm) S x t (mm) Fa,z (N) Packaging in pcs Number of packaging Demand
311001012 10 - 12 M8 1/8" 42 20 x 1,25 800 100
311001216 12 - 16 M8 1/4" 48 20 x 1,25 800 100
311001719 17 - 19 M8 3/8" 51 20 x 1,25 800 100
311002023 20 - 23 M8 1/2" 57 20 x 1,25 800 100
311002530 25 - 30 M8 3/4" 63 20 x 1,25 800 100
311003138 31 - 38 M8 1" 71 20 x 1,25 800 100
311004046 40 - 46 M8 5/4" 80 20 x 1,25 800 100
311004853 48 - 53 M8 6/4" 88 20 x 1,25 800 50
311005458 - 54 - 59 M8 94 20 x 1,25 800 50
311006064 60 - 64 M8 2" 100 20 x 1,25 800 50
311007278 72 - 78 M8/M10 2 1/2" 114 25 x 1,5 800 50
311008792 87 - 92 M8/M10 3" 128 25 x 1,5 800 50
311102116 108-116 M8/M10 4" 153 25 x 2 800 50
3X1001216 12 - 16 M8/M10 1/4" 48 20 x 1,25 800 100
3X1001719 17 - 19 M8/M10 3/8" 51 20 x 1,25 800 100
3X1002023 20 - 23 M8/M10 1/2" 57 20 x 1,25 800 100
3X1002530 25 - 30 M8/M10 3/4" 63 20 x 1,25 800 100
3X1003138 31 - 38 M8/M10 1" 71 20 x 1,25 800 100
3X1004046 40 - 46 M8/M10 5/4" 80 20 x 1,25 800 100
3X1004853 48 - 53 M8/M10 6/4" 88 20 x 1,25 800 50
3X1005459 54 - 59 M8/M10 94 20 x 1,25 800 50
3X1006064 60 - 64 M8/M10 2" 100 20 x 1,25 800 50
