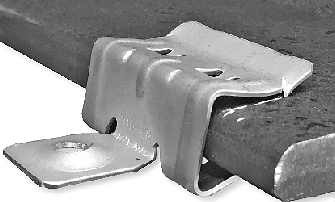

Fastening for electronics/

drive-on clamp

PŘÍCHYTKA NARÁŽECÍ
PŘÍCHYTKA NARÁŽECÍ
  • Technical data
  • material: spring steel
  • surface finish: Delta Tone 9000
  • hole 6,3 mm
  • only for static loads
Ordering code
CAD
Packaging in pcs
Maximal load in N
Min. length for insertion (mm)
Thickness of fixing rail (mm)
Type of the fasting
Number of packaging
Demand
Ordering code CAD Packaging in pcs Maximal load in N Min. length for insertion (mm) Thickness of fixing rail (mm) Type of the fasting Number of packaging Demand
322039004 - 100 700 18 1,5 - 4 vertical
322039009 - 100 900 25 4-10 vertical
322039008 - 100 900 25 10-15 vertical
322039010 - 100 900 25 15 - 20 vertical
322039011 - 100 900 25 24 - 30 vertical
322041001 - 100 200 18 4-10 horizontal
322041002 - 100 200 25 10-15 horizontal
